MCB – Single Pole 10KA Miniature Circuit Breaker 125A (MC 10K125)

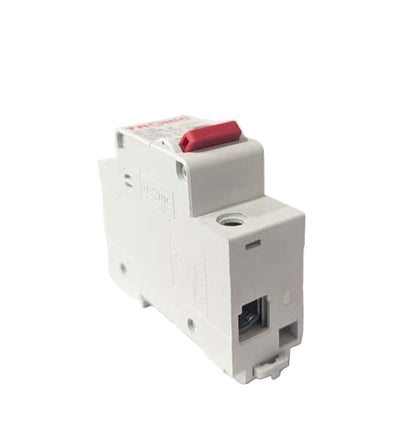

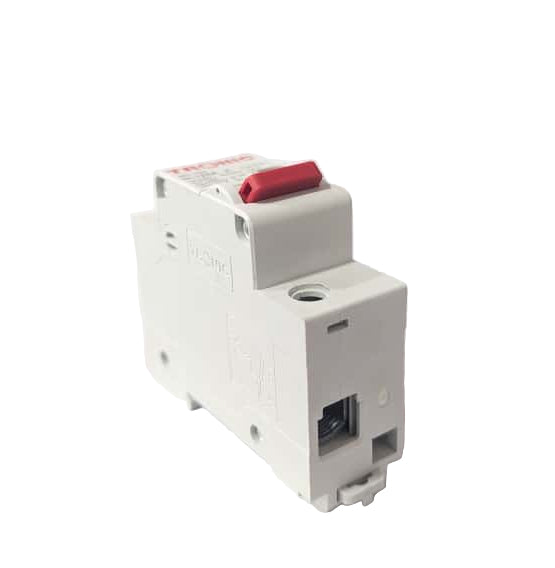

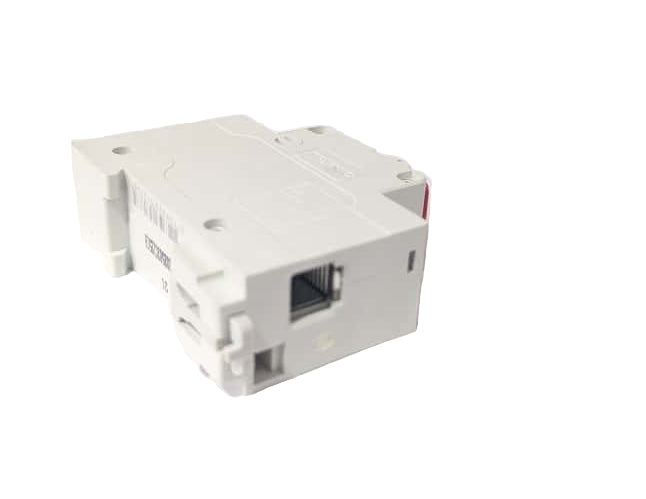

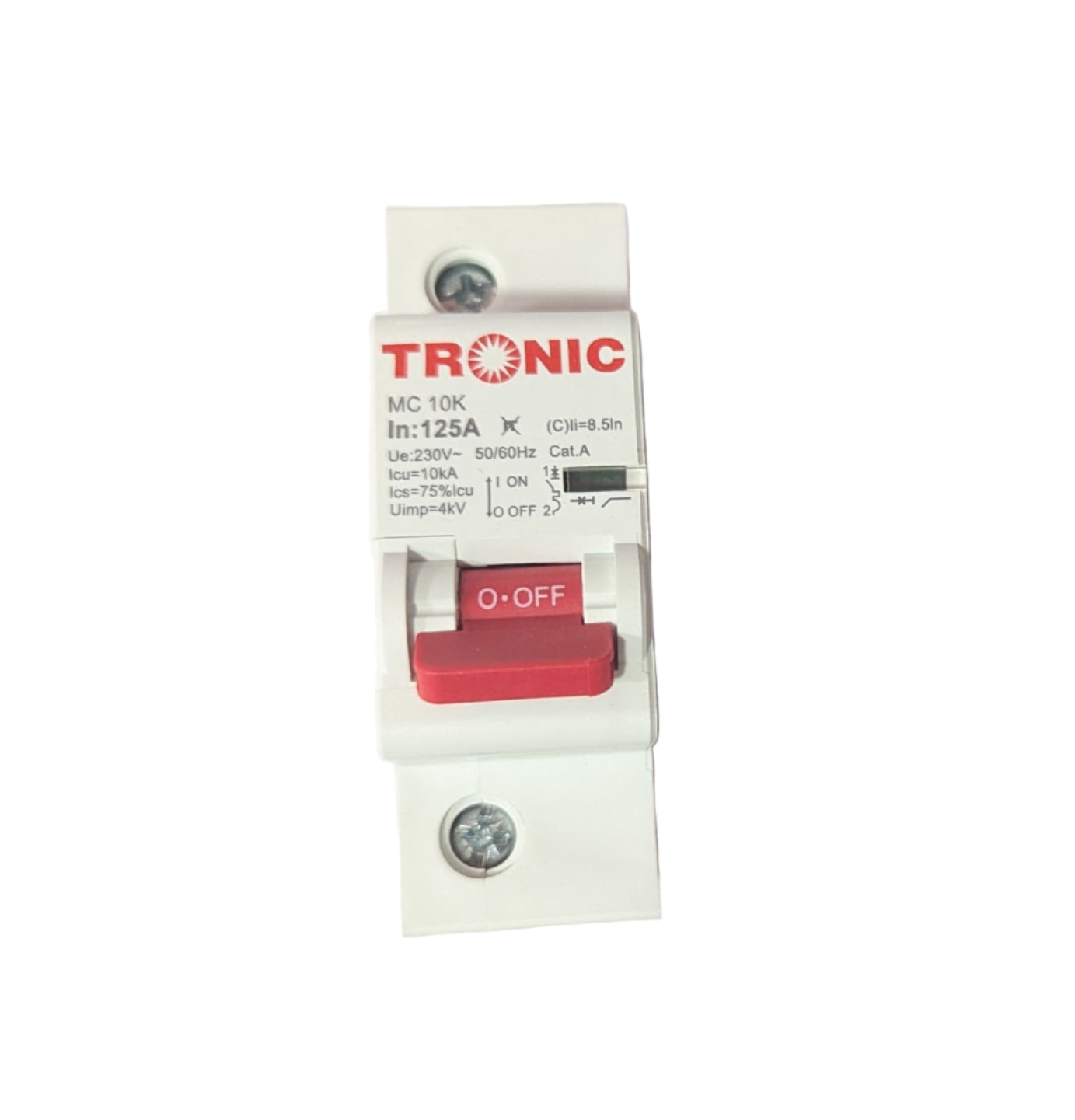

Engineered for maximum safety and performance, this 1-pole miniature circuit breaker (MCB) is rated at 125A with a high-breaking capacity of 10kA, making it suitable for industrial and commercial distribution systems. With a red toggle for clear indication, it protects against overcurrent and short circuits while complying with IEC/EN 60947-2 standards. The compact design allows for easy installation on DIN rails, while the dual screw terminals ensure secure connections.

Features:

• Poles: 1 Pole
• Rated Current (In): 125A
• Rated Voltage (Ue): 230V~
• Frequency: 50/60Hz
• Breaking Capacity (Icu): 10kA
• Rated Service Breaking Capacity (Ics): 75% of Icu
• Impulse Withstand Voltage (Uimp): 4kV
• Tripping Curve: Type C
• Installation: DIN rail mounted
• Standard Compliance: IEC/EN 60947-2

Applications:

• Industrial Panels: Reliable circuit protection for machinery
• Commercial Buildings: Main distribution board and branch protection
• Workshops & Factories: Safeguards equipment from overloads
• Power Distribution Units: Ensures high current handling and fast disconnection
• Control Cabinets: Ideal for protecting high-power loads

Trust Mateen Electric for quality electrical components that deliver lasting performance
