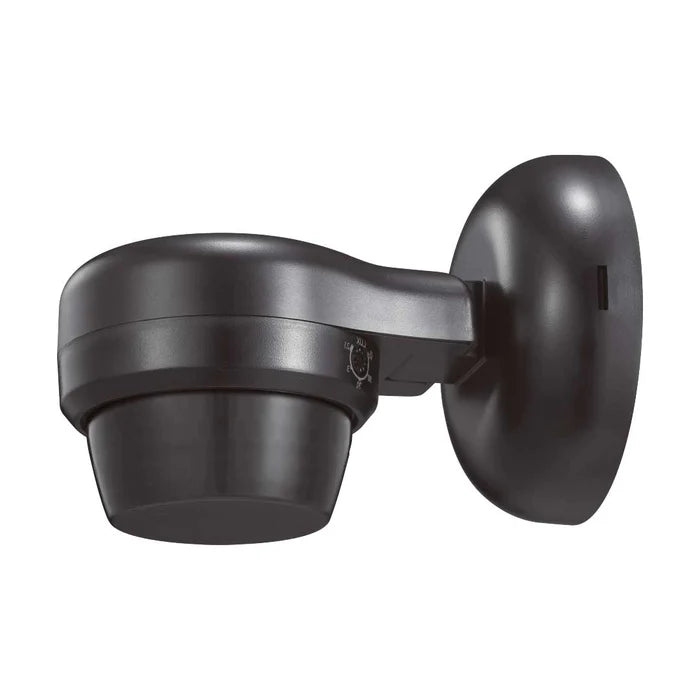

Infrared Motion Sensor – 360° Detection, Wall Mount, Black (PH 1518-BK)

Enhance your lighting automation and security with this infrared motion sensor designed for reliable performance and wide-area coverage. With 360° detection and adjustable time and light settings, it’s ideal for activating outdoor or indoor lights only when needed. The sleek black design blends into any environment, while the IP65 rating ensures durability against dust and moisture.

Features:

• Detection Range: 360°
• Voltage: 220–240V
• Load Capacity: 600W LED
• Detection Distance: Up to 12m
• Time Delay: 10s–15min (adjustable)
• Light Sensitivity: 3–2000 LUX
• Mounting Height: 1.8–2.5m
• IP Rating: IP65
• Material: Black housing
• Dimensions: 88 x 88 x 130 mm

Specifications:

• Detection Range: 360°
• Voltage: 220–240V AC
• Frequency: 50/60Hz
• Rated Load: 600W (LED)
• Detection Distance: Wall: 1.5m–12m (±24°C, adjustable)
• Ceiling Mount: 1.5m–3.5m (adjustable)
• Time Delay: Min: 10 sec ±3s / Max: 15 min ±2min (adjustable)
• Ambient Light: 3–2000 LUX (adjustable)
• Installation Height: 1.8m–2.5m
• Detection Motion Speed: 0.6–1.5m/s
• Working Humidity: <93% RH
• Working Temperature: -20°C to +40°C
• IP Rating: IP65 – Suitable for outdoor use
• On/Off Cycles: >100,000
• Material: Durable black housing
• Dimensions: 88 x 88 x 130 mm

Applications:

• Security lighting: Detects motion and triggers floodlights at night
• Energy-saving zones: Automatically controls lights in low-traffic areas
• Outdoor entrances: Provides automatic lighting for doors and gates
• Garage and driveway: Activates lights only when movement is sensed
• Walkways and corridors: Ideal for motion-triggered illumination
• Retail displays: Powers up spotlights when customers approach
