400A 6 Ways Three Phase Distribution Board (PR DB400-06)
400A 6 Ways Three Phase Distribution Board (PR DB400-06)
Regular price
3,200,000 TZS
Regular price
Sale price
3,200,000 TZS
Taxes included.

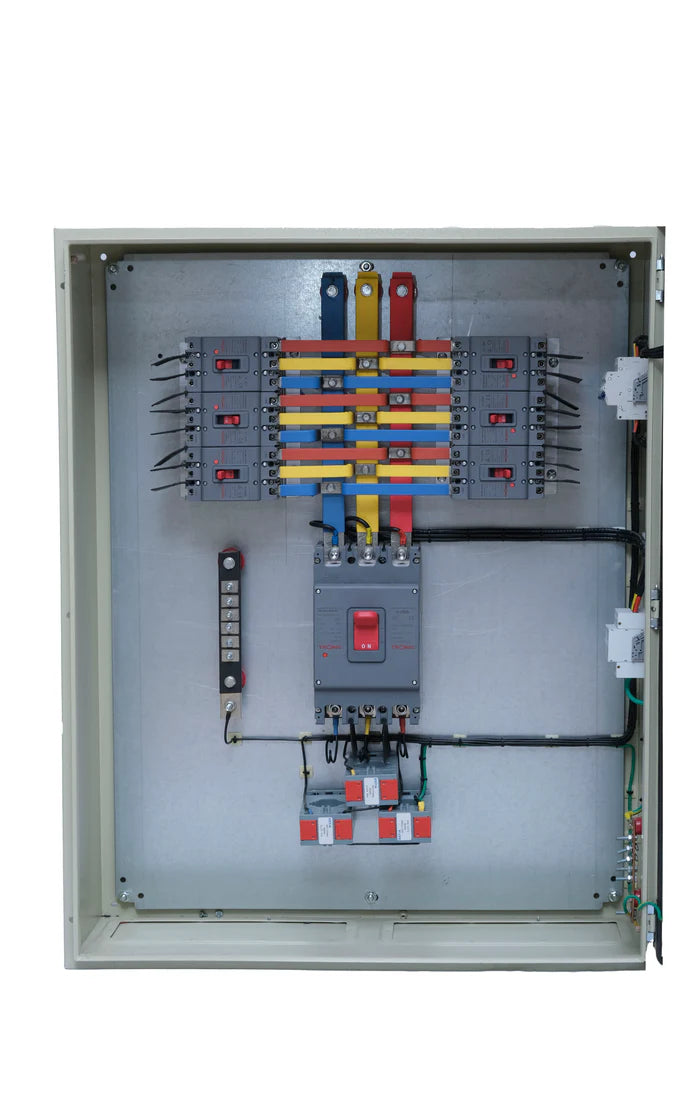

| Item Description | 400A 6 ways TPN Distribution Board | |
| Functional components | Incomer | 400A TP MCCB |
| Outgoing | Provision for 32A-100A TP MCCB (4pc) | |
| Rated Voltage | 400V | |
| Rated Current | 400A | |
| Features | Readymade & simple, safe operation | |
| Form 2b Type 1 sepration | ||
| Digital Multifunction Meter | ||
| Three Phases Pilot Lamp Indications | ||
| Type 2 Surge Protection included | ||
| Elegant & sleek in appearance | ||

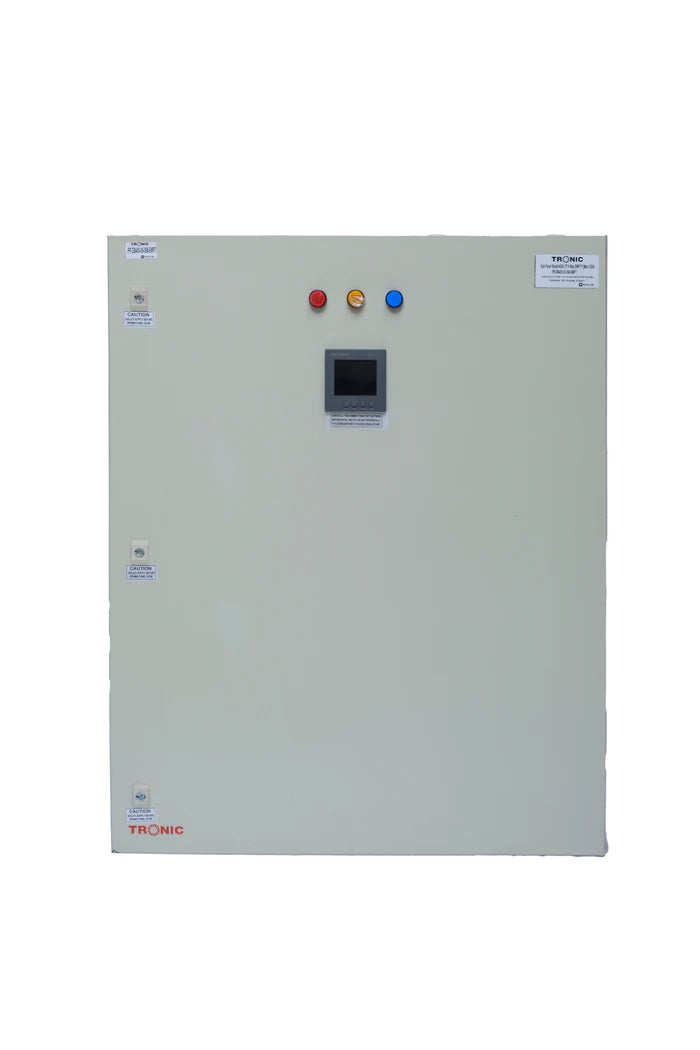

| Enclosure details | Dimensions | 800mm (length) * 1000mm (height) * 300mm (depth) |
| Colour | RAL 7032 | |
| Coating | Epoxy Polyester Powder Coating Textured Finish | |
| Mounting | Wall-mountable | |
| Cable entry | Bottom | |
| Mechanical Impact Rating | IK 10 | |
| Ingress Protection Rating | IP 66 | |
| Material & Coating | Steel | |
| Operating environment | Water and moisture | Minimal water jets and Moisture |
| Vibration & Gas | No strong vibrations and no harmful gases that may corrode the metallic parts or the PVC enclosure and damage the insulation | |
