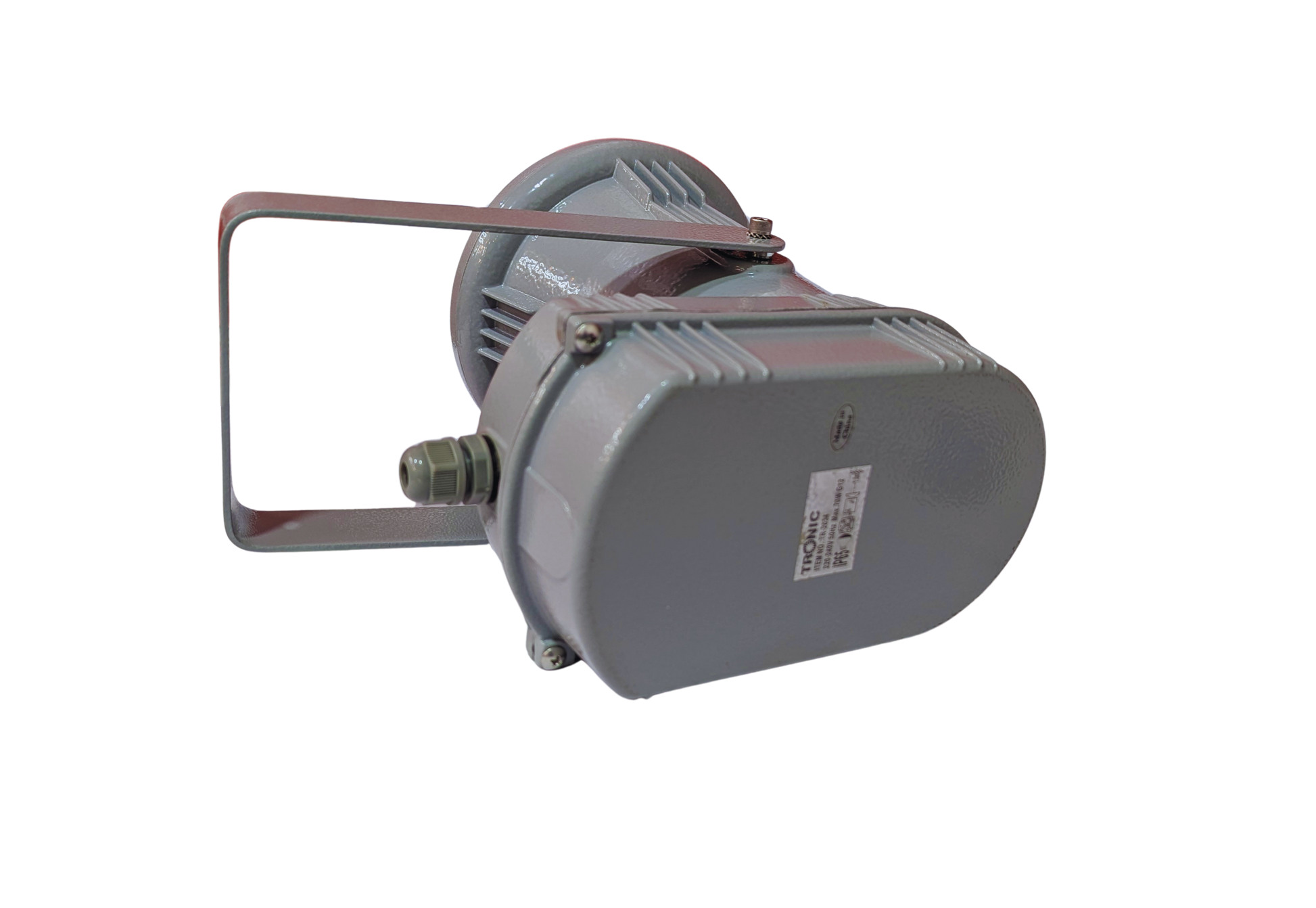

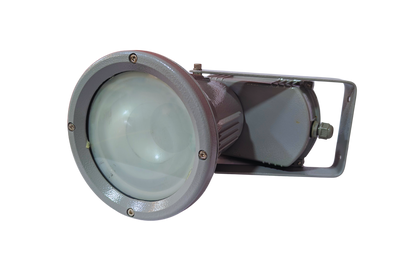

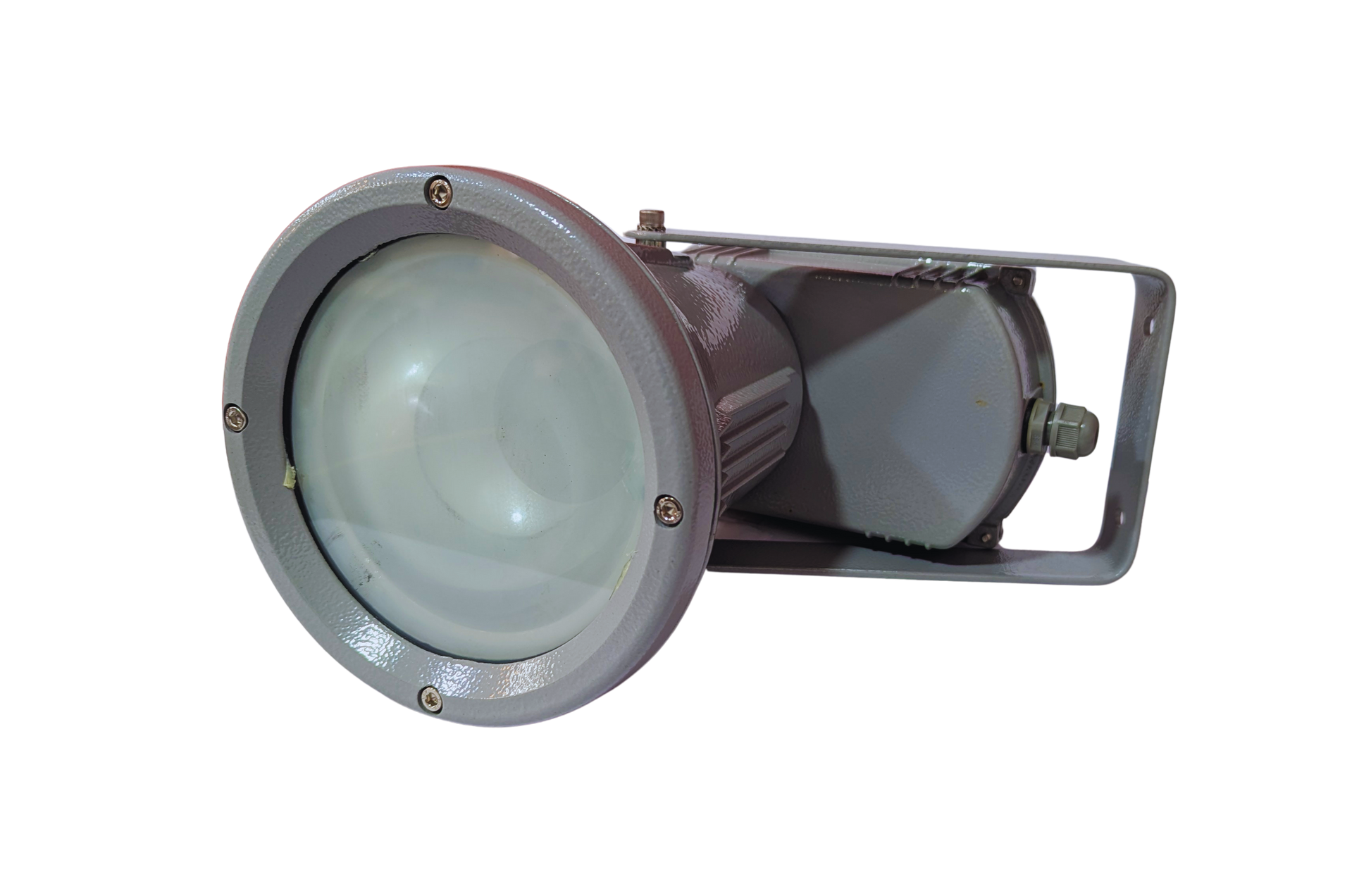

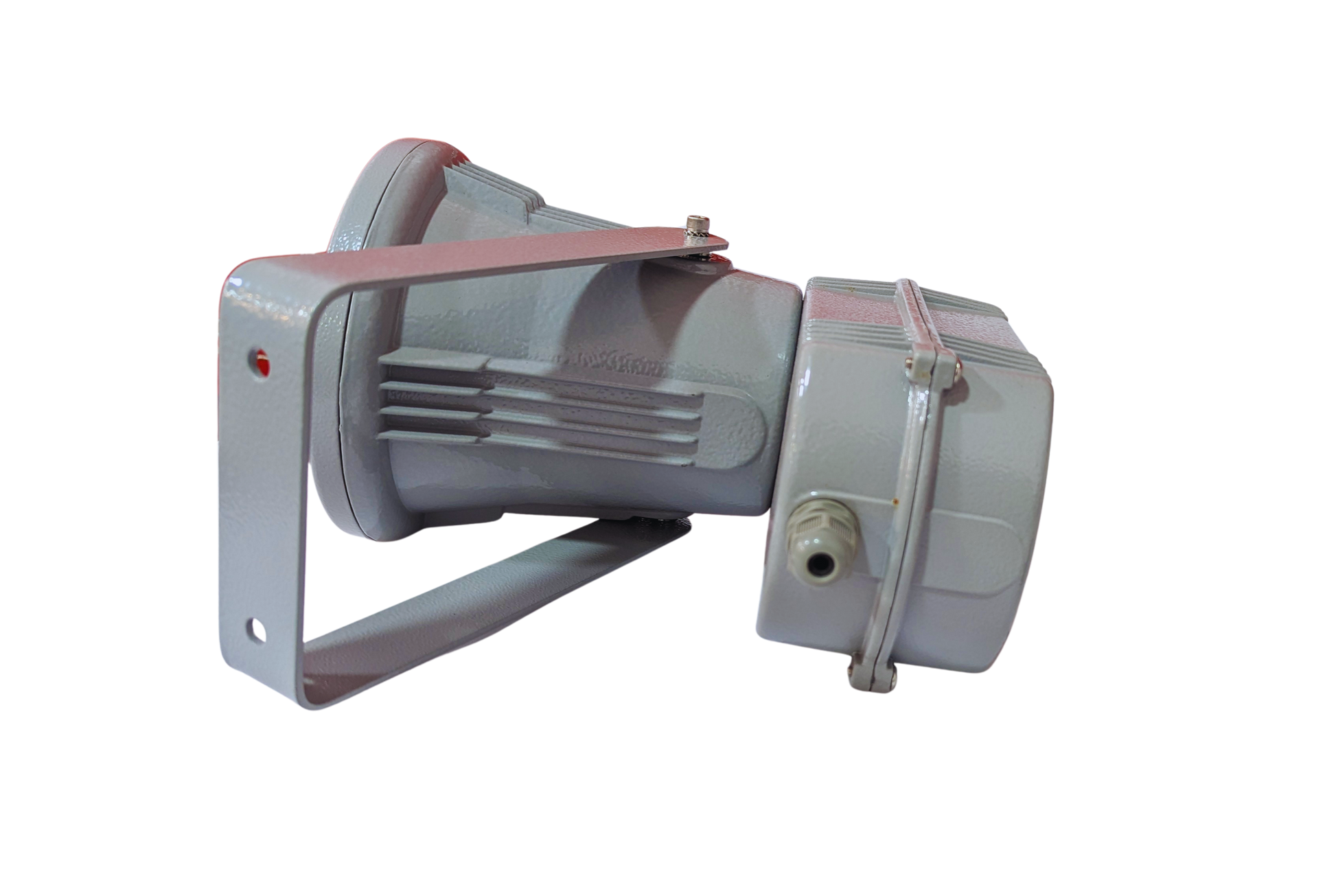

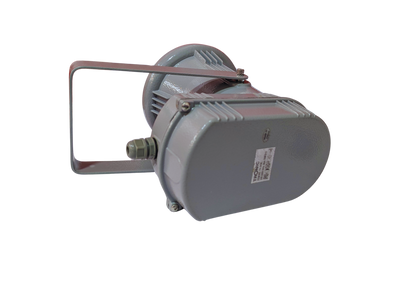

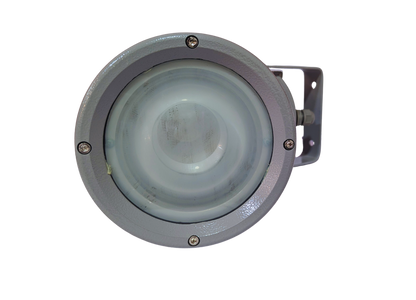

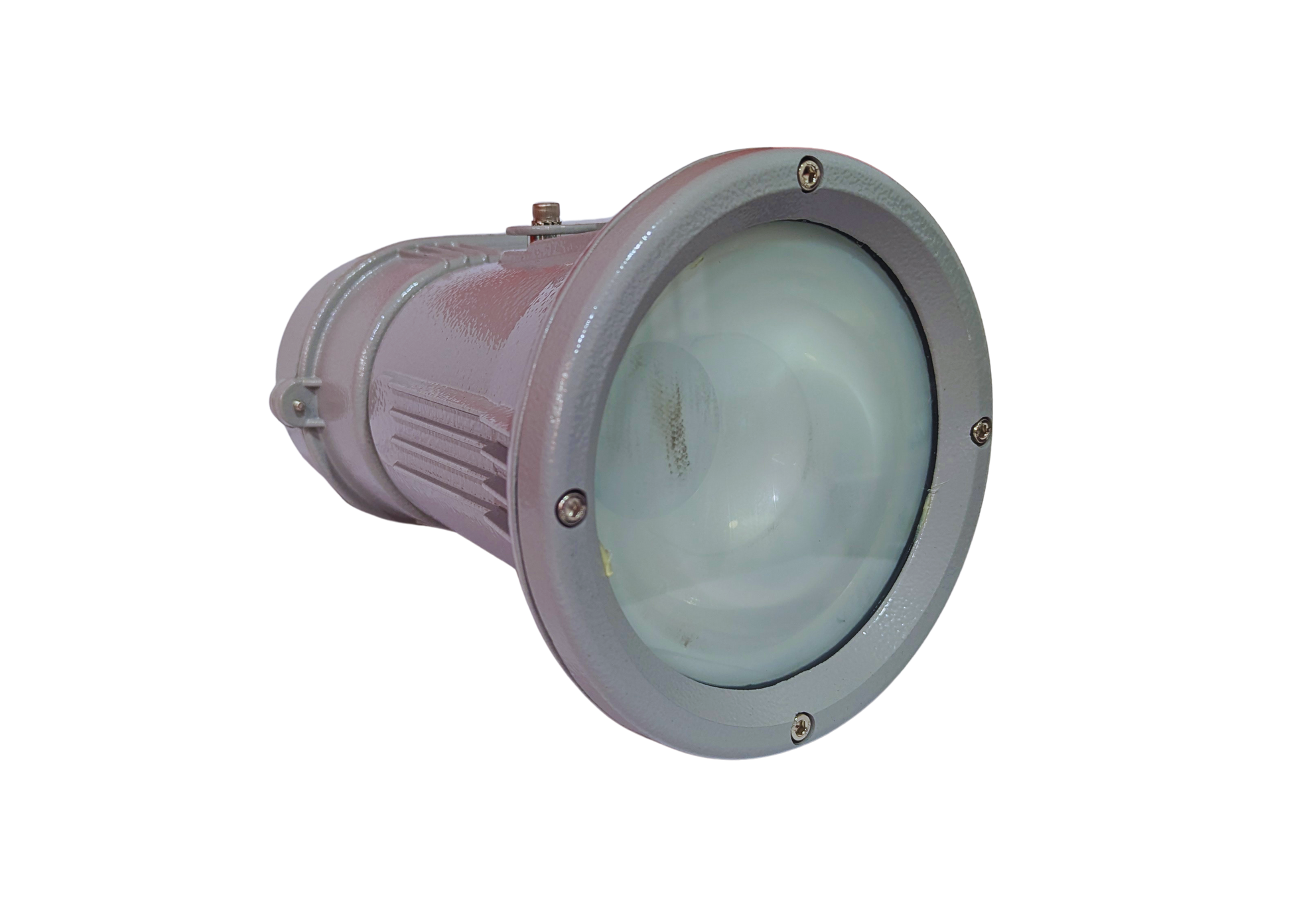

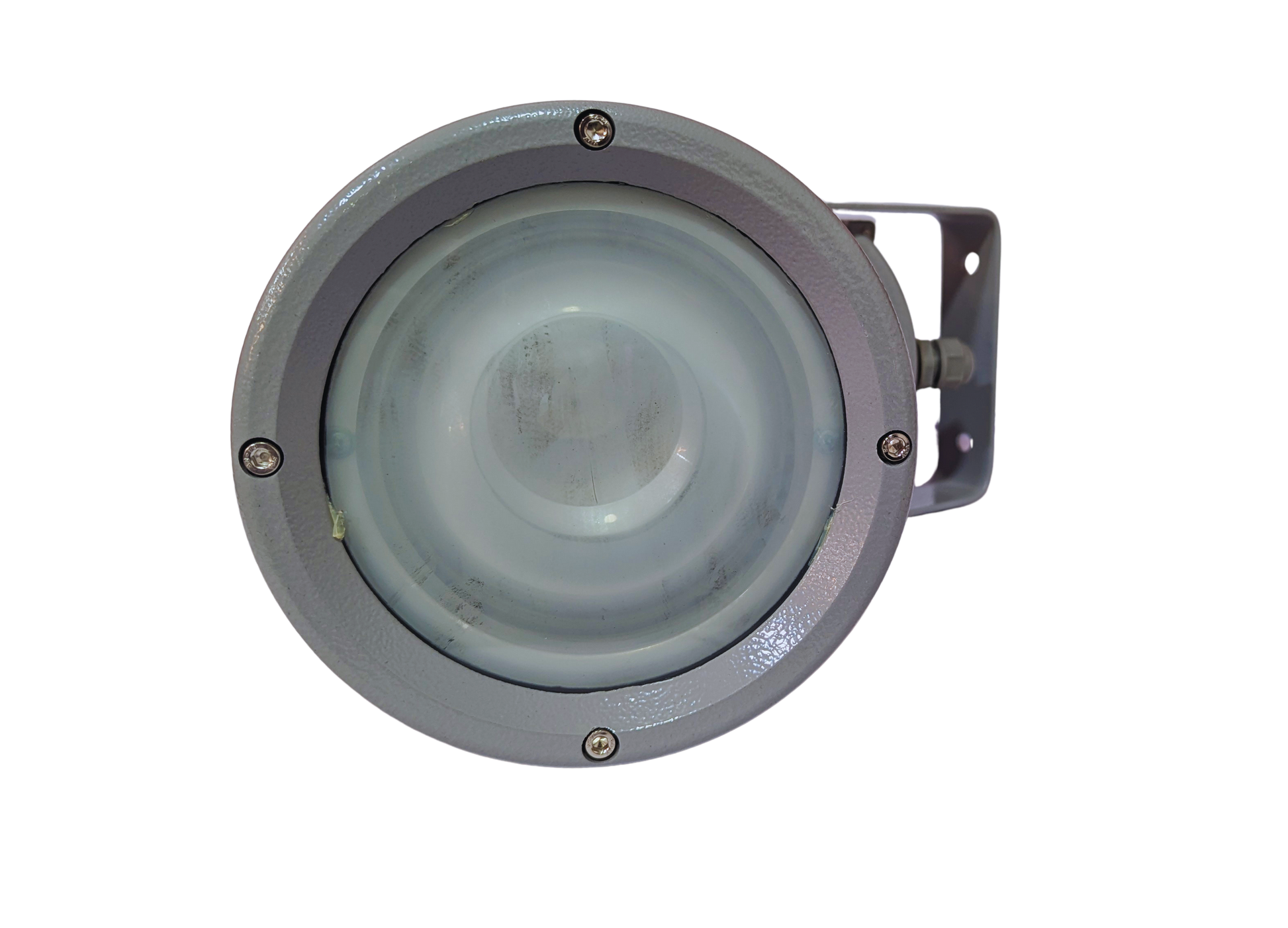

TR2034

INSTALLATION USE AND MAINTENANCE INSTRUCTIONS

Warning ! Safety of this floodlight is guaranteed only if the following:

instructions are properly respected. It is therefore necessary to preserve them.

• Warning! Before connecting to the main network, during positioning or

  replacement of lamps, ensure the tension has been disconnected.

• For positioning or replacement or lamp, follow the instructions given1

  by the lamp's manufacturer, which should be supplied with the lamp2

  itself. Use only lamps with anti-UV protection.3

  When the floodlight is on, ensure that a minimum distance of 1m between4

  the lamp and the illuminated surface is respected, as indic5ated by the

  relative symbol(Fig.2-3).(--1.0m)

• The floodlight can be used only with the protective glass.It's a float

  tempered glass. Sodic-calcic type.

• The floodlight is suitable for outdoor and indoor use.

• Fix the supporting bracket of the floodlight by means of (at least) 2

  screws M10 positioned in the outer holes of the bracket(Fig.4).

• Installation height: any.

• After adjusting the floodlight's aiming, tighten the 3 screws M8 which is

  fixing to the bracket, with 50+55Nm torsion.

• The floodlight is not suitable for serial installation of more floodlights.

• For wire connections of the floodlight make use of cables type

  H05 RN-F with diameter ϕ=7+-11mm and minimum section of 1mm$^2$

  for each lead-in wire.

• Connect it to the terminal board as shown in Fig.1.

• After connecting the feeding cable to the floodlight's terminal board

  block it with the cable clamp and tighten the cable gland deeply.

• During installation and use,follow the instructions about functioning

  positions and minimum distances as indicated by Figures 5-6 and do

  not aim the floodlight towards walls or ceilings.

• Each angle will be controlled by tightening the affixed screw ate the

  bracket. Fig7

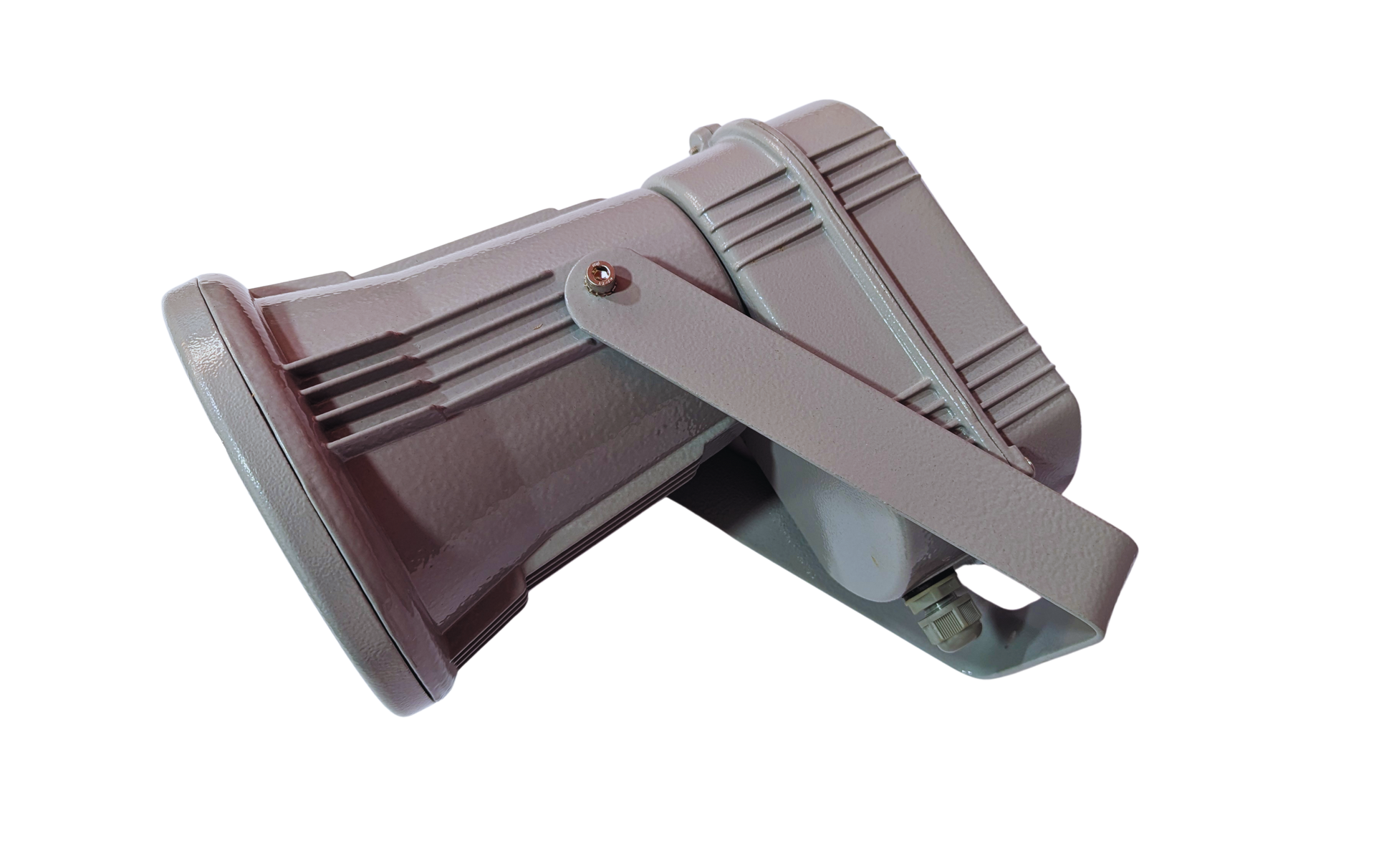

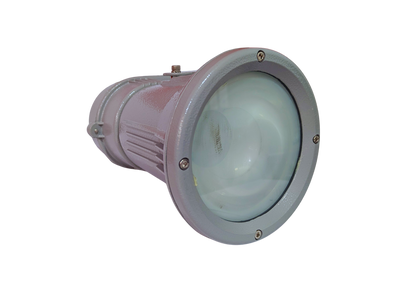

FLOODLIGHT FOR METAL HALIDE

AND HIGH-PRESSURE SODIUM LAMPS

Characteristics

• Voltage: Single Phase 220V-240V~ 50Hz

• Insulation class: I

• Lamp's Power and Current: 70W 1.0A/150W 1.8A

• Cos $\varphi$: 0.9

• Lamp holder: G12

• Protection degree: IP65

• Screws: M8

• Net Weight: 1.94kg(3.3kg)/1.94kg(3.8kg)

• Max surface exposed to the wind: 1m$^2$
